Take you through the daily operation process of workshop's cent

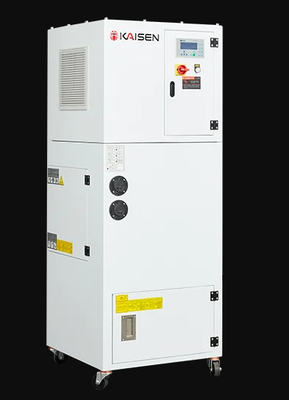

  • workshop's centralized dust collection system includes frame, motor, fan, electric control box, dust filter bag, door, vibration motor, vibration mechanism, hopper, dust hopper, dust door and dust filter frame. The frame includes upper shell and lower shell, and the motor and fan are arranged in the upper shell. The dust filter bag, the hopper and the dust receiving hopper are arranged in the lower shell, the dust filter is installed between the upper shell and the lower shell, the dust filter bag is connected with the dust filter frame, the elastic sealing pad is arranged between the frame and the dust filter frame, the vibration motor is connected with the dust filter frame through the vibration mechanism, the air inlet is arranged on the side of the lower shell, the air outlet is arranged above the upper shell, the motor and the vibration motor are respectively connected with the electric control box. The dust collector has the characteristics of compact structure, easy operation, low noise, good dust removal effect, and can be directly applied to small places and laboratories.

    Below, take you to understand the daily operation process of workshop's centralized dust collection system:

    1. Recovery filtration: After backblowing, the solenoid valve is closed, the cleaning operation of the system is completed, and the filter bag is restored to the filtration state;

    Second, dust bag ash interception: dust containing gas into the filter bag, a large amount of dust is intercepted on the filter bag, and the air flow through the filter bag to achieve purification;

    Third, ash hopper ash removal: ash removal device and dust collector run at the same time, should be cleaned in time, ash hopper as far as possible not to accumulate ash, otherwise it will affect the service life of the filter bag;

    4. Discharge clean flue gas: the purified air flow enters the water film dust removal desulfurizer through the bag room;

    workshop's centralized dust collection system Induced draft fan inhalation: In normal operation, under the action of the induced draft fan, the dust-containing gas is sucked into the intake main pipe and evenly distributed to each intake chamber through each intake branch pipe;

    6. Air blowback: With the thickening of dust attached to the surface of the filter bag fabric, the resistance of the workshop's centralized dust collection system continues to rise, and it is necessary to clean the dust regularly. The whole cleaning process is mainly completed by the action of high-pressure gas storage bag, solenoid valve, blowpipe and cleaning control mechanism. First, the control system automatically opens the solenoid valve in order, and the high-pressure air is blown back through the spray pipe, so that the dust adhering to the dust bag is washed and shaken off into the ash hopper;

    workshop's centralized dust collection system: The control system then opens other solenoid valves, cleaning other filter bags, all filter bags through the cleaning cycle, so as to achieve the purpose of cleaning, the dust collector restores the filtering state.

    workshop's centralized dust collection system The main reason for the bad shaking mechanism is the joint bearing. In practice, if the hole of the joint bearing is worn long, the rocker rod hardly moves when the rocking motor is running. The reason is that when designing this mechanism, the rocking time is stipulated to be 30s, so this time is sufficient. There are two joint bearings in the rocking mechanism, the above one is connected with the motor eccentric, the following one is connected with the rocker crank, and the bearing connected with the eccentric wheel runs in a circular motion, while the other only does reciprocating motion. Accordingly, the above bearing connected with the eccentric wheel has a large operating amplitude, and it is also easy to heat. When the continuous running time is less than 30s, there is no problem with slight heating. If the running time is extended to more than 1min, it will heat up, which will seriously burn the bearing. Therefore, when selecting workshop's centralized dust collection system, the shaking cleaning time cannot be changed at will.

    workshop's centralized dust collection system The main reason for the bad shaking mechanism is the joint bearing. In practice, if the hole of the joint bearing is worn long, the rocker rod hardly moves when the rocking motor is running. The reason is that when designing this mechanism, the rocking time is stipulated to be 30s, so this time is sufficient. There are two joint bearings in the rocking mechanism, the above one is connected with the motor eccentric, the following one is connected with the rocker crank, and the bearing connected with the eccentric wheel runs in a circular motion, while the other only does reciprocating motion. Accordingly, the above bearing connected with the eccentric wheel has a large operating amplitude, and it is also easy to heat. When the continuous running time is less than 30s, there is no problem with slight heating. If the running time is extended to more than 1min, it will heat up, which will seriously burn the bearing. Therefore, when selecting workshop's centralized dust collection system, the shaking cleaning time cannot be changed at will.

    workshop's centralized dust collection system https://www.kaisenfilter.com/KSDC-8604B-B1-Centralized-Dust-Collector.html
